Optimized Storage Solutions for High-Speed Data Environments

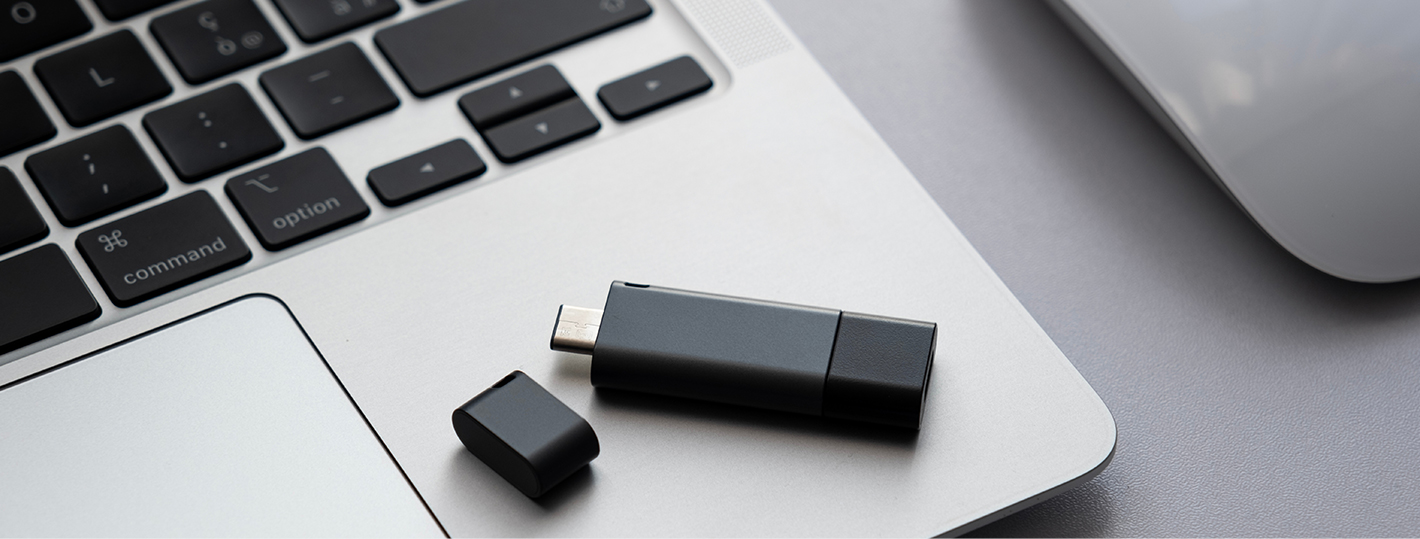

AIO’s UFD Controllers are high-performance USB Flash Drive solutions based on USB 3.2, delivering high performance and stability through proprietary Controller SoC and Firmware technologies. With USB 3.2 Controller and NAND Flash optimization technologies, they provide high data throughput, low power consumption, and competitive cost efficiency.
They also incorporate proven ECC and NAND Flash management technologies from AIO’s SD and eMMC products to ensure high reliability and data protection. In particular, the Firmware is optimized to maintain stable write performance in continuous high-speed write environments such as dash cams and mobile video storage devices. Through continuous Firmware optimization, AIO’s UFD Controllers can flexibly address diverse storage requirements.
Features
USB 3.2 Gen 1
High-Speed Interface Support
Backward Compatibility
with USB 3.0 / 2.0 / 1.1
Enhanced Data Reliability
with LDPC ECC
Stable High-Speed
Sequential Write Performance
Low-Power
Controller Design
NAND Flash-Optimized
Firmware
Specifications
| TS5214 | |
|---|---|
| Standard | USB 3.2 Gen 1 |
| Process Node | 28nm CMOS |
| ECC Engine | LDPC |
| Sequential Performance | Read: Up to 450 MB/s / Write: Up to 350 MB/s |
| Operating Temperature | -25°C ~ +85°C (Standard) / -40°C ~ +85°C (Industrial Option) |
| Operating Voltage | 1.2V / 2.5V |
| NAND Type | 2D MLC, 3D TLC NAND Flash |
| Maximum Capacity | 2TB (Multi-Die Configuration) |
| USB On-the-Go (OTG) | Direct Smartphone Connectivity |
Applications
USB Flash Drives
Smartphones
Tablets
Digital Cameras
Action Cameras
Drones
Dash Cams
Industrial Equipment
Medical Devices
